Prototype CONNECTIT double/single skinks' tank design for multibay .

Postby kingofnobbys » Mon Jan 27, 2020 7:01 am

Ready to return to my modular mix and match multibay dragon and skink enclosure .

Built the frame for the first of two prototype bearded dragon enclosures using aluminium 1" square hollow tubes connected using CONNECTIT joiners , and 10x10x1.6mm aluminium channel to slide the precut 6mm thick UV stabilized clear acrylic side , back and front panels into.
The building the second enclosure , will be identical on Wednesday (?). See my other thread for design and how it'll all fit together and with my mobile cabinet base that it'll all sit ontop off ( design and build and "final" result after stain vanishing.

I'm opting for a 40cm tall tank for the 3 water skinks and it'll designed so I can very easily and quickly partition one side from the other by lifting off the 9mm thick plywood lid , and sliding a 6mm thick panel of white acrylic or maybe some 6mm thick panel of plywood to separate my 2 adult females from my horny subadult male when I don't them to breed . My design is shown below :

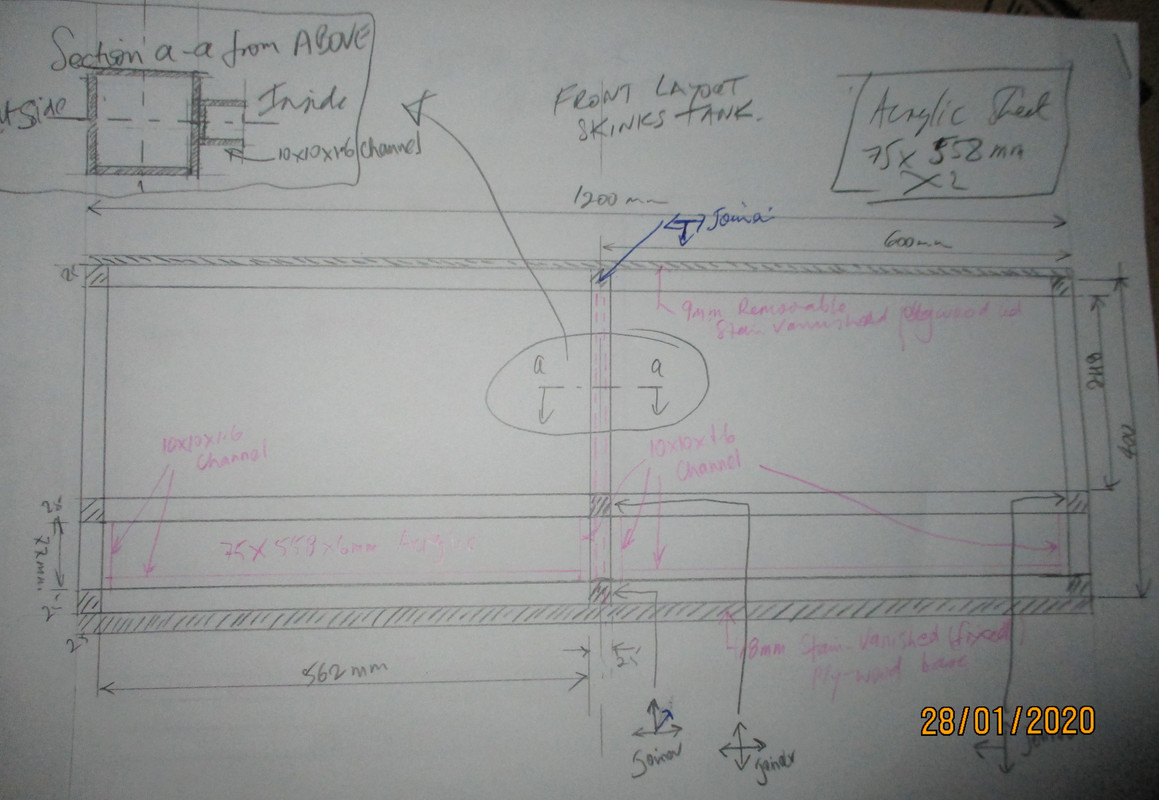

front

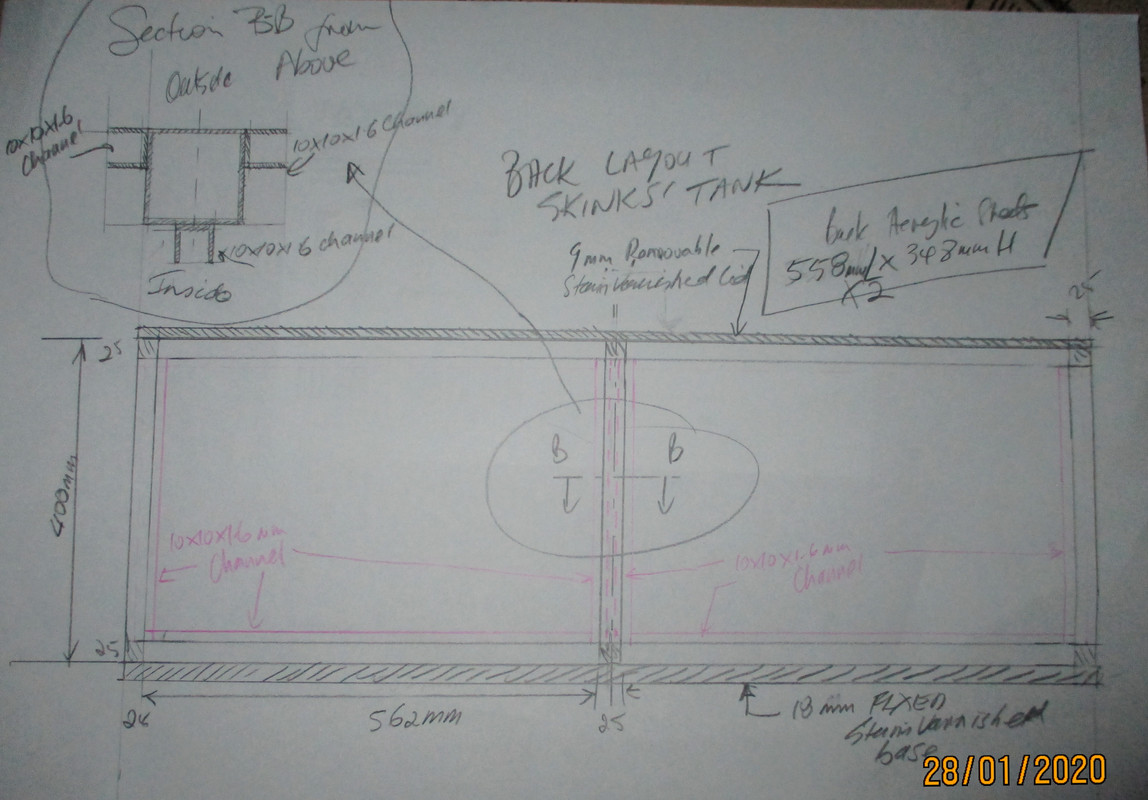

back

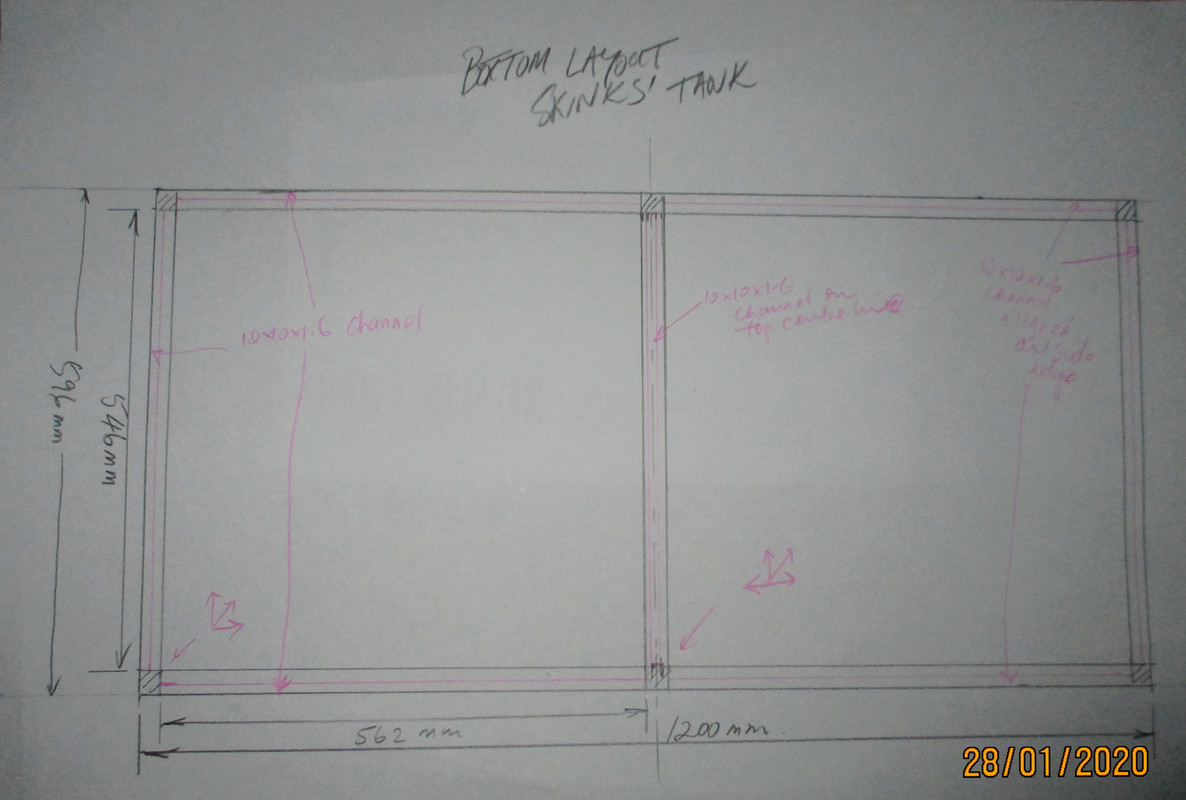

bottom

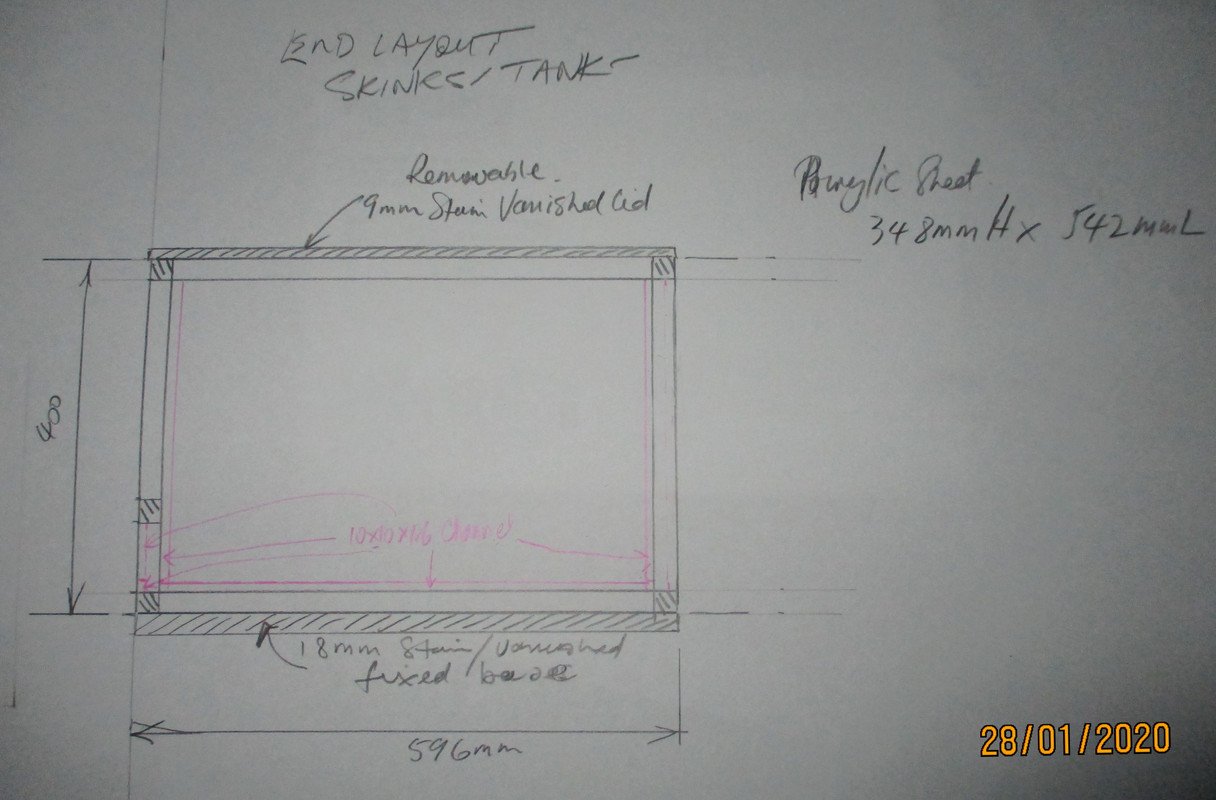

side

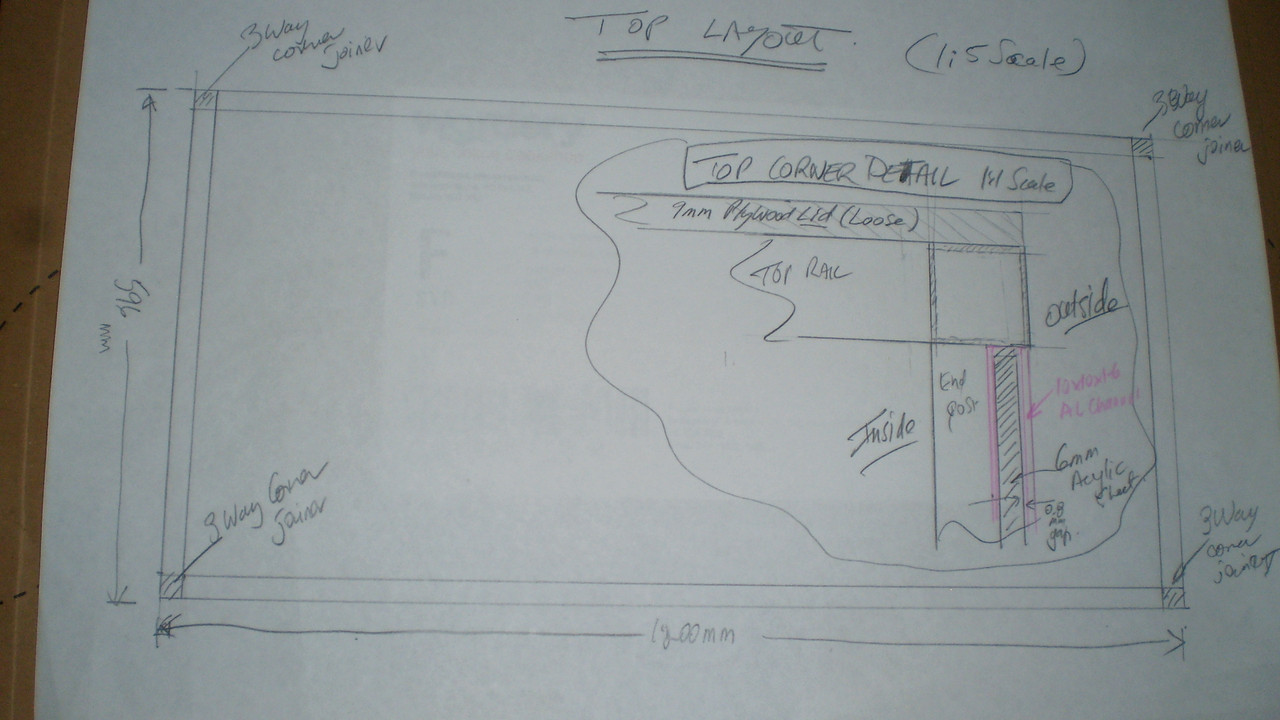

top (showing how channel fits the 6mm acrylic

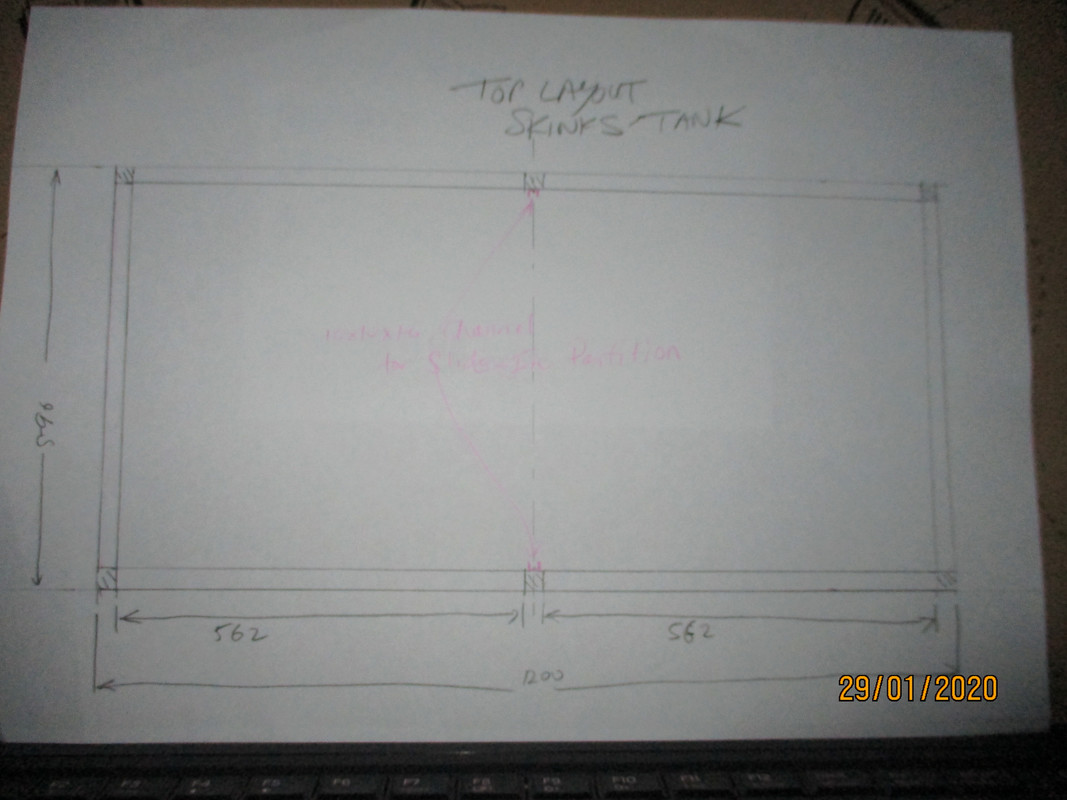

top in general

The adjustable tank will is also good design for baby and juvenile BTS , PTS , knobtail skinks, etc being two side by side 600mm L x 596mm D x 400mm T tanks that can be converted a single 1200mm x 596mm D x 400mm T tank in about 1 minute.

I did consider doing something similar to that American company who sell similarly constructed tanks wrt using double sided adhesive tape to hold skinky under doors kickboard in place but I don't that's a satisfactory solution (even if it looks tidier, being invisible and not obvious).

I also considered going with a 30cm to 35cm tall tank , but think that's too restrictive on the climbing options and brings the basking light too close to the skinks.

Comments welcome.
kingofnobbys
Bluey Devotee
Bluey Devotee
Posts: 1202
Joined: Tue Apr 04, 2017 2:17 am
Country: australia
Location: NSW

Re: Prototype CONNECTIT double/single skinks' tank design for multibay .

Postby kingofnobbys » Tue Jan 28, 2020 8:48 am

Prototype Nesting Frames
To make stocked modular enclosures secure , simply made from 30x30mm DAR so the 18mm bases fit the frames for the 9mm lids.
A couple mm gap between is probably enough to stop the inner frame from binding on the outer frame .

Same 30x30 DAR frame size will be on the top of lids and on the top of the cabinet base.
The 30x30 DAR frame on the bottom of the bases will drop inside the 30x30 DAR frame on either the top of a lid or the cabinet-base's top.
